DIMENSIONS
General
Length Overall (L.O.A.):
Length at Waterline (L.W.L.):
Beam (molded):
Draft (loaded):
Tonnage: 64 gross
Displacement: 86,700 lbs
Capacities
Fuel Capacity:
- 977 US Gallons
- (3,700 liters)
Water Capacity:
- 264 US Gallons
- (1,000 liters)
Black Water Capacity:
- 87 US Gallons
- ( 329 liters)
Grey Water Capacity:
- 52 US Gallons
- ( 196 liters)
Speed
Maximum:
- 32.0 knots
- Consumption: 77 US Gallons /hr
- Range: 300 nm
- RPM: 2,800
Cruising:
- 23.0 knots
- Consumption: 51 US Gallons /hr
- Range: 460 nm
- RPM: 2,100
Economical:
- 14.0 knots
- Consumption: 30 US Gallons /hr
- Range: 520 nm
- RPM: 1,200
MACHINERY
Main Engines - Less than 375 hours!
Engine Type: (2) Volvo Penta IPS D13 @ 1,000 Hp each
Gearboxes for Main Engines: Volvo integrated gearbox
Drive: Pod drive
Propellers: NiBral, 3-blade & 4-blade, contrarotating
Generators & Electricity
Output: 120/240V, 21kW, 88 AMPs
Generators: (1) Kohler 21EKOZD generator
Generator Fuel Consumption: 1 Gallon per hour
Shore Power: (2) 125/250V, 50 AMP receptacles
Shore Power Cables: (2) Glendinning
Inverter System: Victron Energy, 24/120V, 3000 Watt
Batteries:
- (1) Deka 12V AGM, Group 31 (generator start) – New June 2025
- (6) Deka, 12V, AGM, Group 31 (house) – New June 2025
- (4) Deka, 12V, AGM, Group 31 (engine start) – New June 2025
Battery Chargers:
- (1) Quick, 12V / 12 AMP
- (1) Quick, 24V / 80 AMP
DC Converter: Newmar 50 AMP
Battery Switches: (4) remote solenoid type
Air Conditioning
Type: Dometic
Cooling Capacity: 96,000 BTU
Other Machinery
Trim Tabs: Volvo Penta blade style, electronic, 34”
Stabilizers: Seakeeper 18 – New July 2025
Bow Thruster:
- Side-power, 24V, electric
- Twin 5-blade propellers in 9” tube
Steering System: Joystick
Fuel Separator & Filtration:
- Raccor R12T fuel filters (primary)
- OEM fuel filters (secondary)
- Electric fuel pump
Sewage System:
- Macerator pump
- Feit 24V overboard discharge pumps and dockside pump-out
Fresh Water System:
- Inline fresh water filters
- Gianneschi 24V freshwater pump
- Quick, 20-gallon, 230V water heater
COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMS
Communication Systems
VHF:
- Garmin GHS 11 (flybridge upper helm)

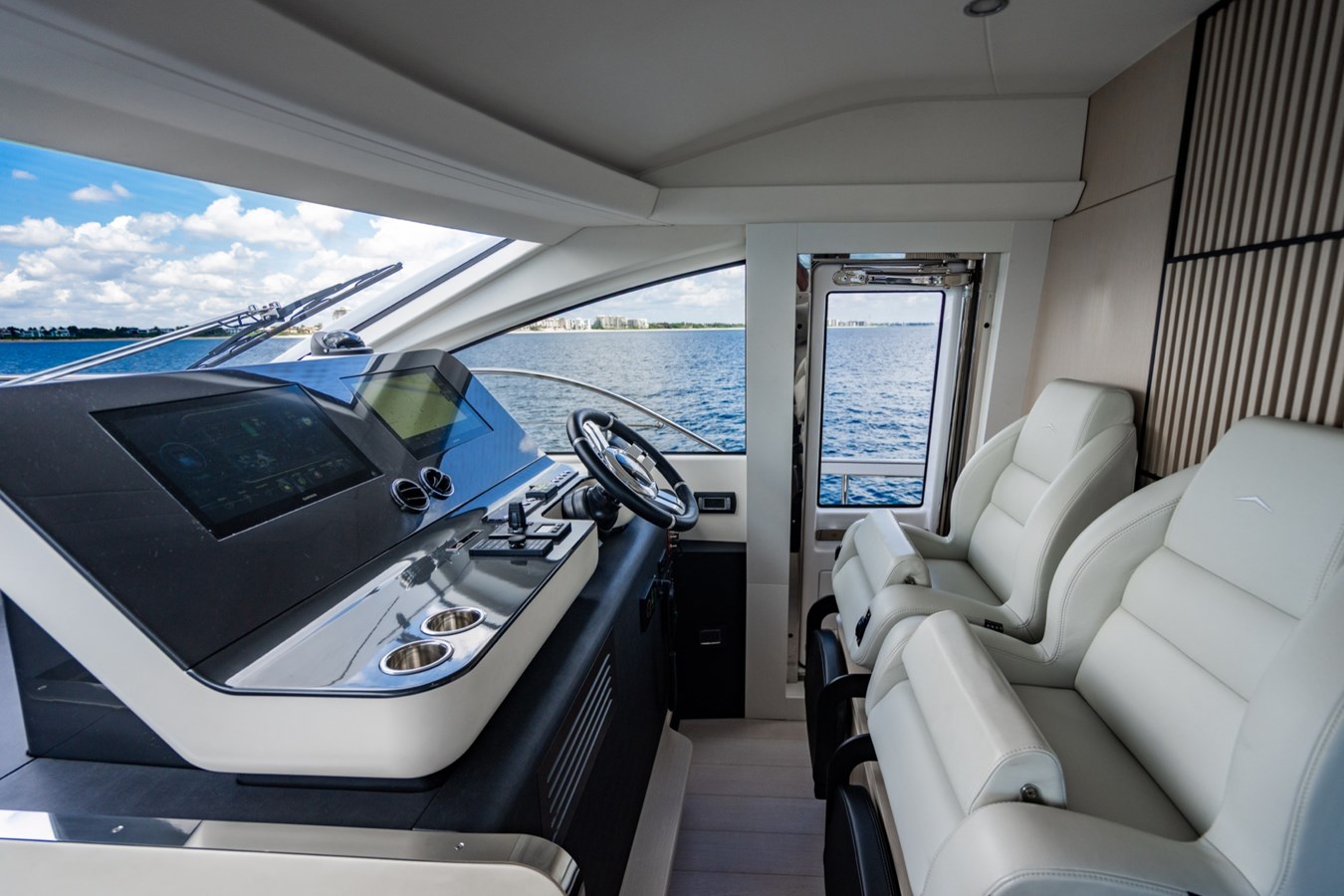

- Garmin VHF 315 (pilothouse lower helm)
Onboard Internet: Starlink - New 2025
Navigation Systems
Radar: Garmin, 72-mile
Magnetic Compass: 4” Ritchie
Auto Pilot:
- Garmin Reactor 40
- Garmin GHC20 display unit
Depth Sounder: Integrated into GPS
GPS: (2) Garmin GPSMAP 8616xSV
Chart Plotter: Integrated into Garmin GPS
Speed Log: Integrated into Garmin GPS
Fishfinder: Integrated into Garmin GPS
Seawater Temperature: Integrated into Garmin GPS
Entertainment System:
Video Equipment / TV’s:

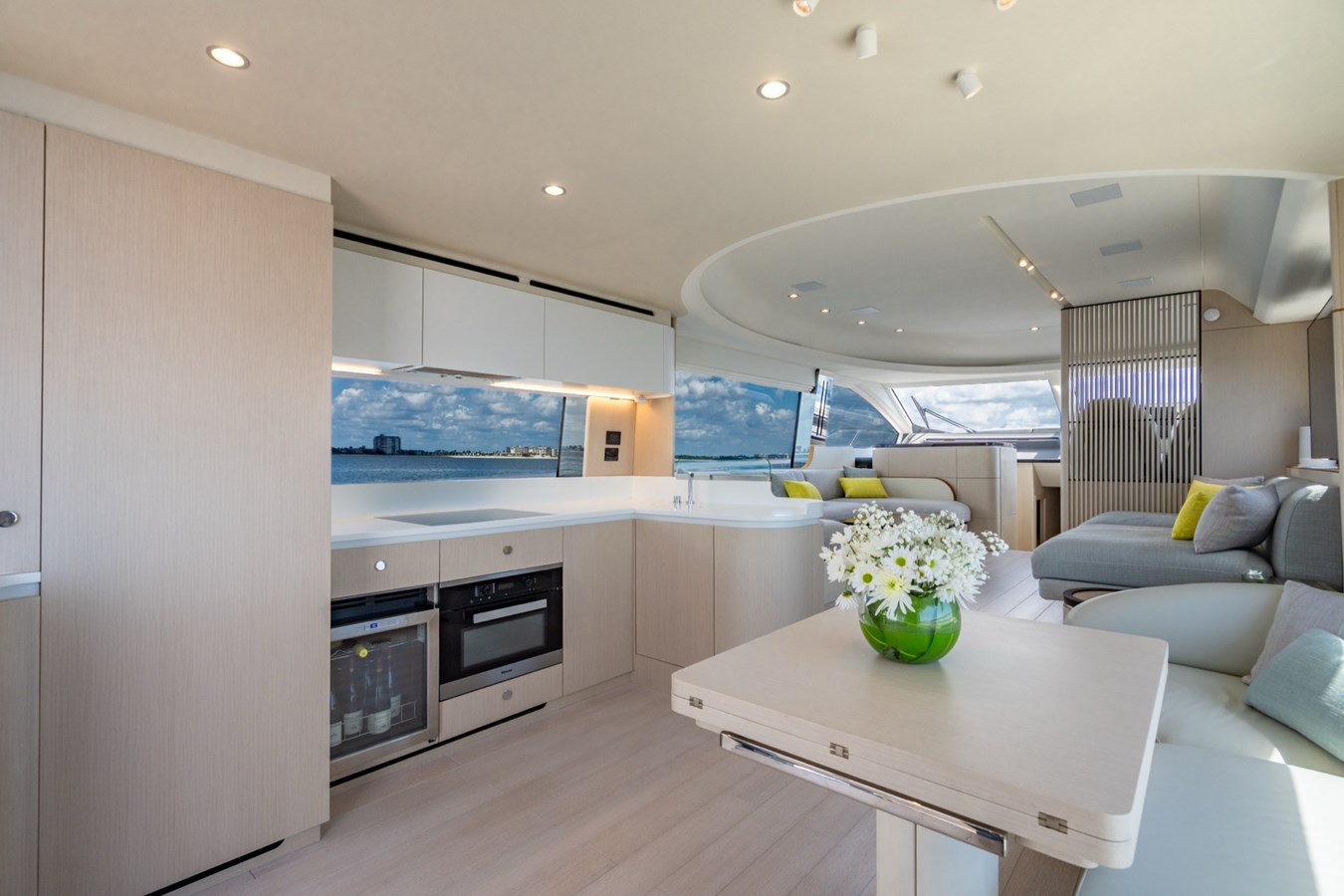

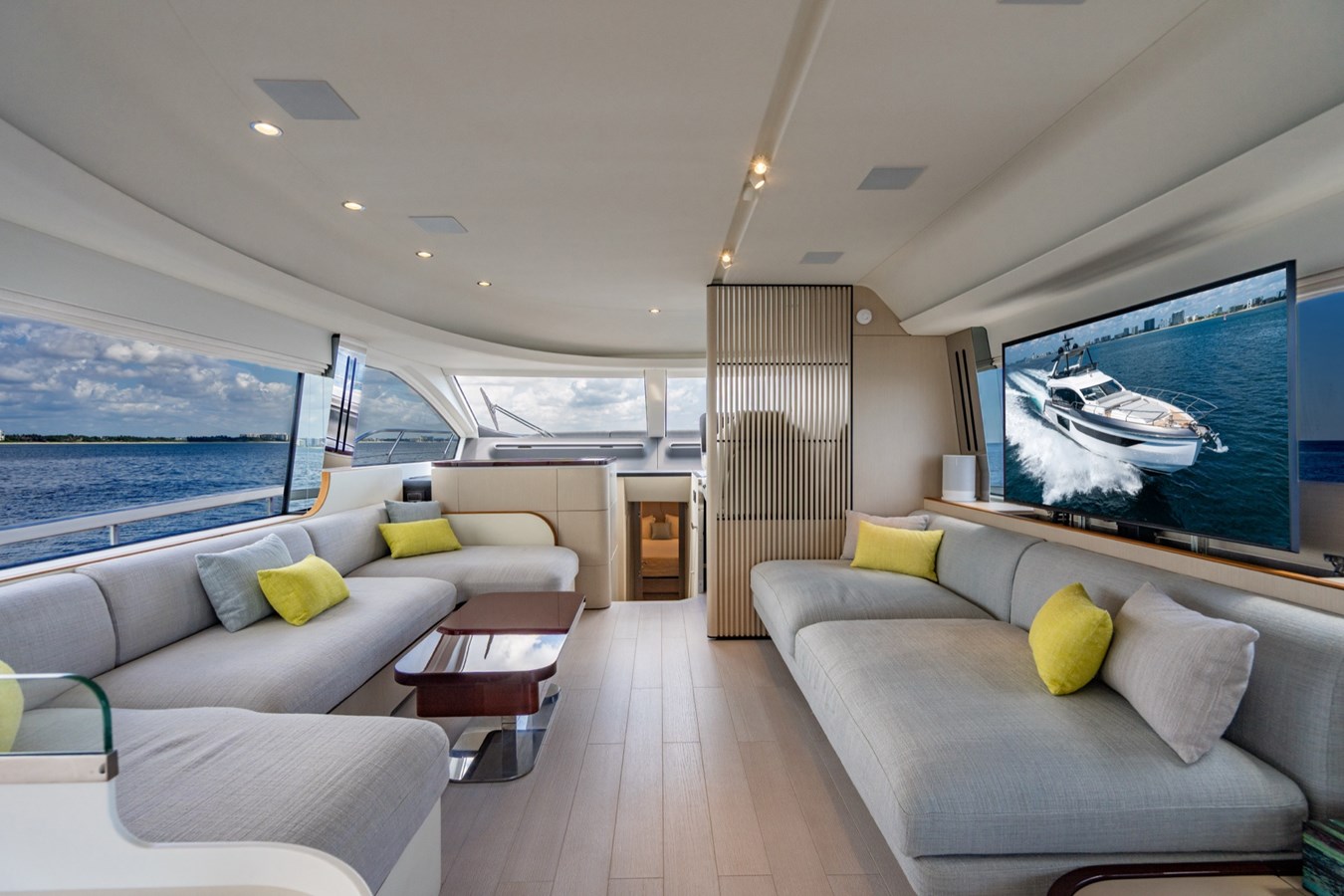

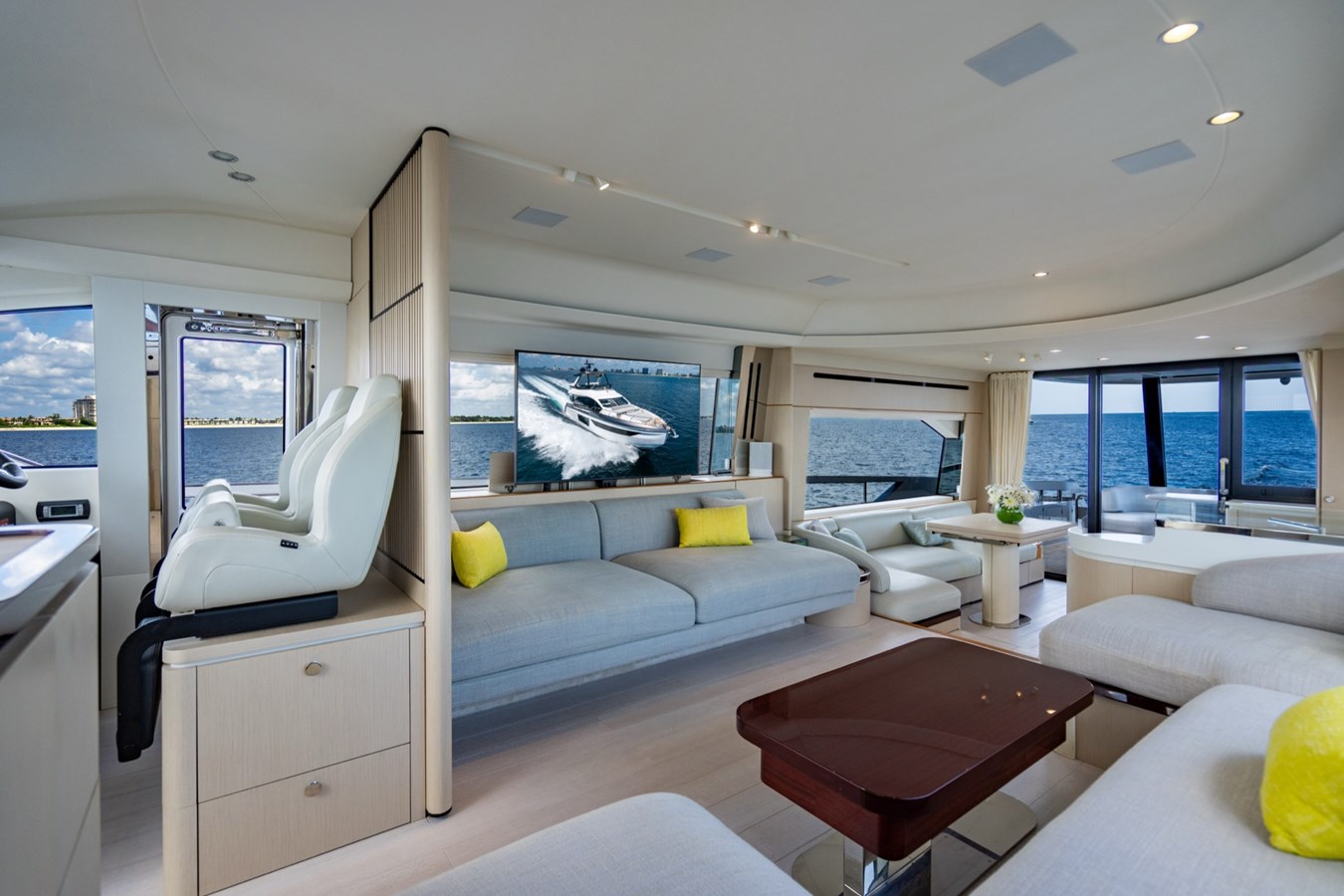

- 43” Samsung Smart TV with powered lift (salon)

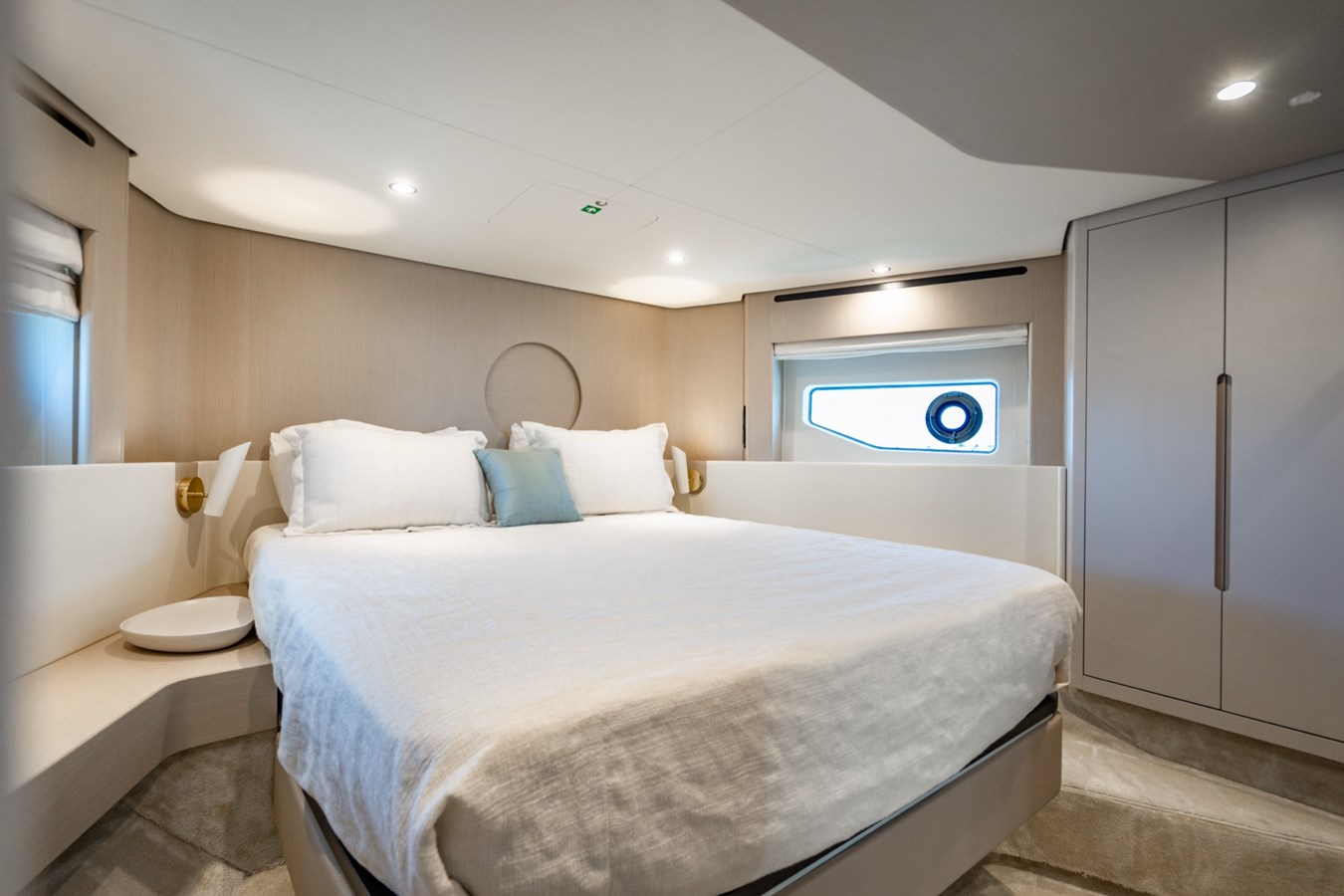

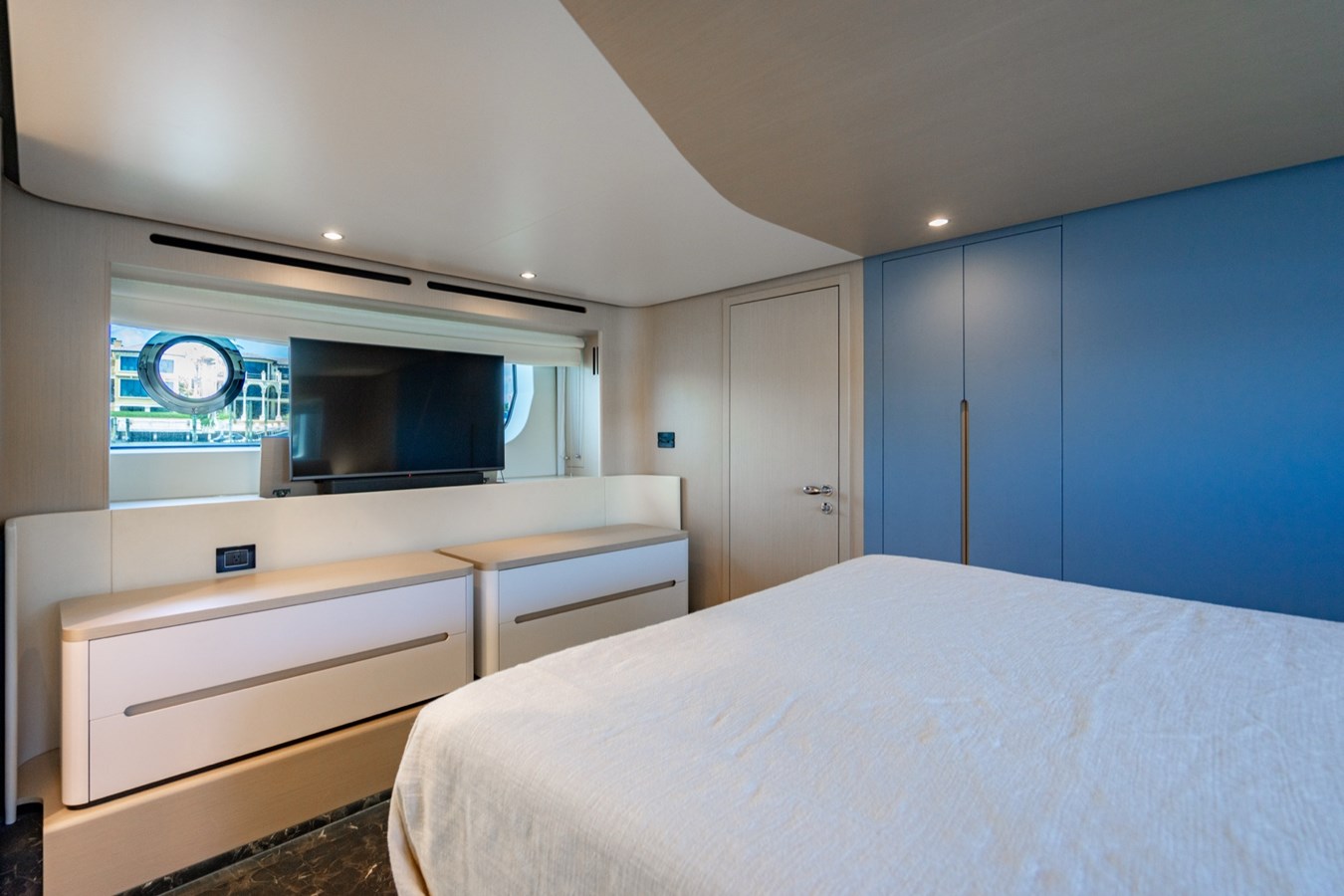

- 32” Samsung Smart TV with powered lift (master stateroom)

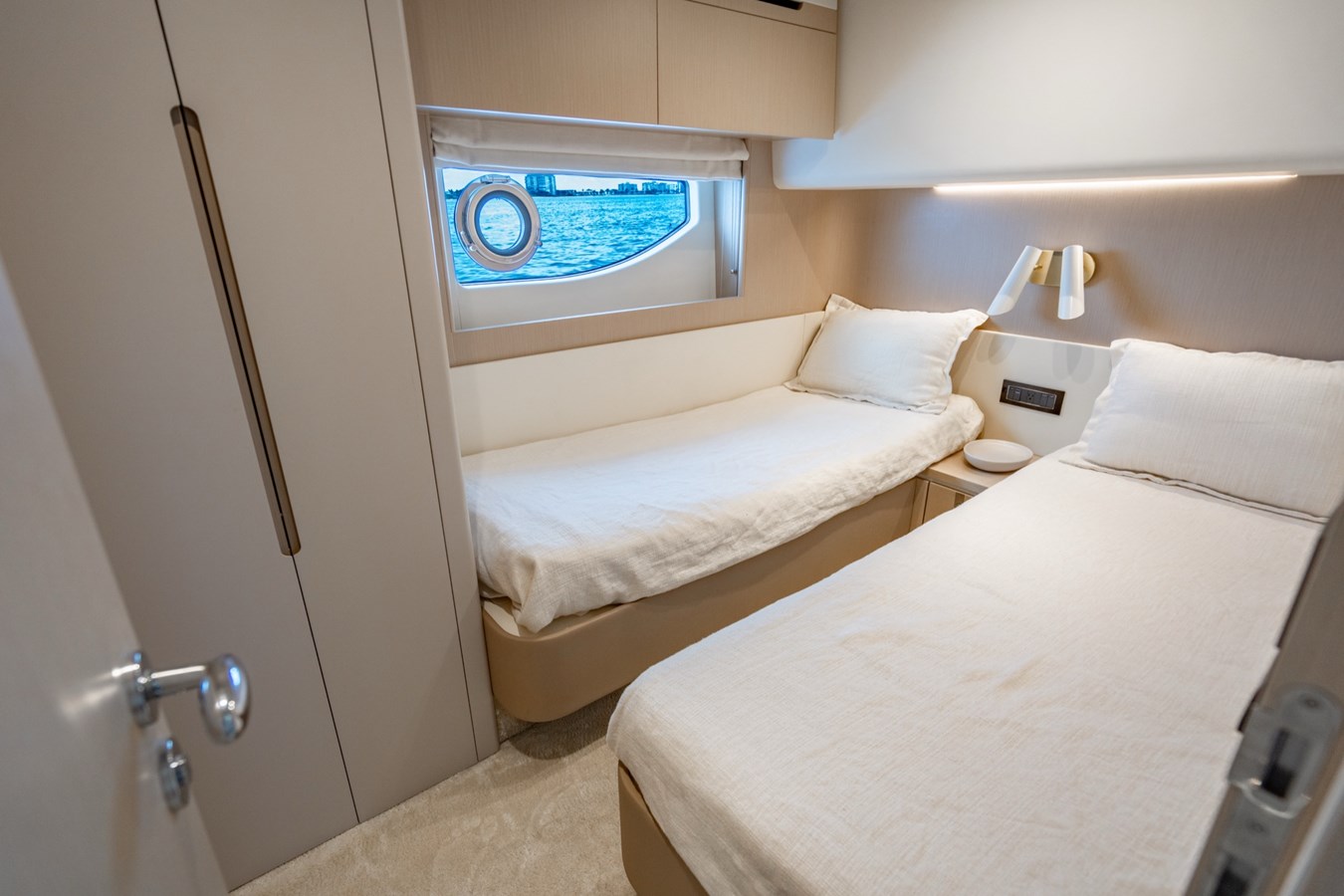

- 27” Samsung Smart TV (guest staterooms)
- 24” Samsung Smart TV (crew cabin)
Audio Equipment / Stereo’s:

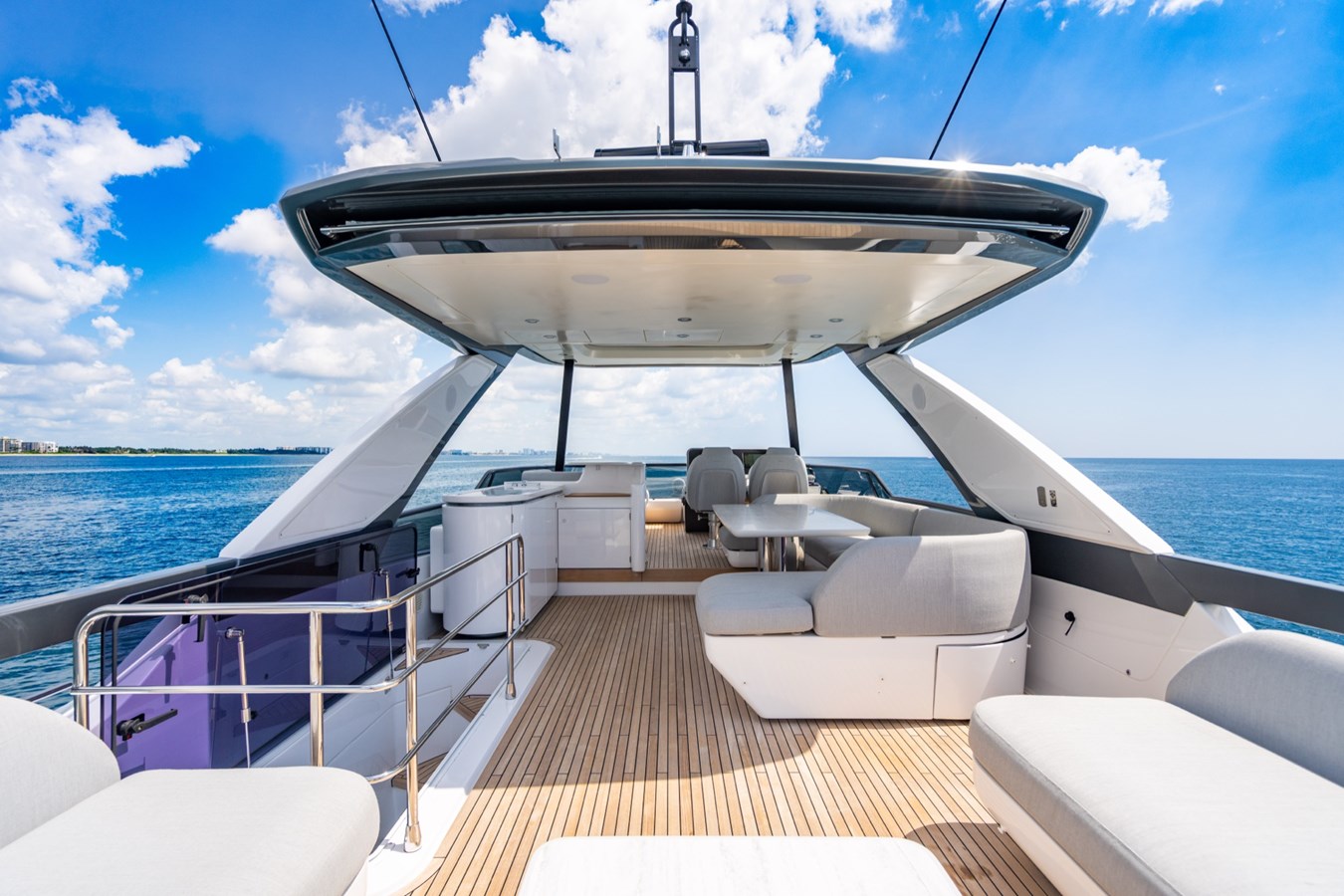

- Fusion BT/SAT/AUX/TUNER (flybridge, foredeck, and aft deck
- Bose sound bars (forward guest and master staterooms)
