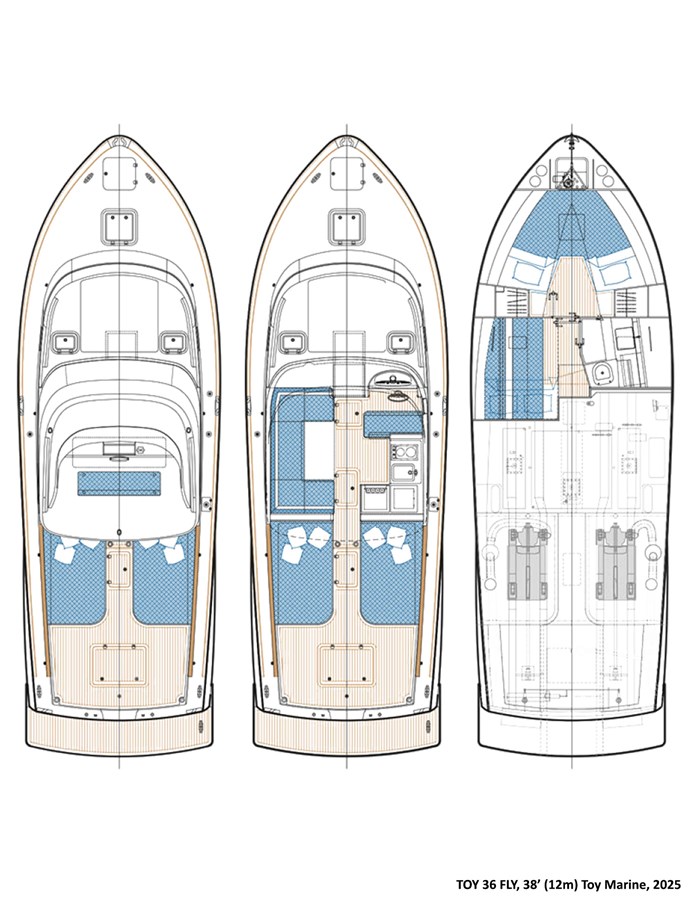

TOY 36 FLY

MAIN CHARACTERISTICS

Hull length 11,00 mt. 36.0 ft

Length overall 11,65 mt. 38.2 ft

Length at waterline 9,96 mt. 32.7 ft

Beam 3,80 mt. 12.5 ft

Draft (max) 0,90 mt. 2.9 ft

Displacement (half load) 8 tons.

Engines N. 2 YANMAR 370 HP

Transmission N. 2 RR 2.08 LP; V-drive gearboxes

Propulsion shafting In line prop shaft with submerged propellers

Steering system Hydraulic system with blade rudders

Fuel capacity 242 UK gallons (1000 Lt)

Maximum Theoretical Cruising

Autonomy 3000 RPM – 28 Knots = 300 Nautical Miles

Water Capacity 132 UK gallons (500 Lt)

Cruising speed 26 knots

Top speed 32 knots

Design: Nauta Design

Certification CE – B off shore

HULL AND STRUCTURES

• Vessel built in accordance with CE certification, cat. B offshore
• Sandwich hullsides and singleskin bottom.
• GRP swimming platform with teak gratings and folding swimming ladder
• Hinged transom door.
• Watertight bulkheads: bow - midship / engine room.
• Hydraulic trim tabs
• Antifouling bottom paint and red / white bootlines.
• Cathodic protection with sacrificial anodes

DECK AND FLY BRIDGE

• Deck and superstructure with fly bridge laminated in GRP sandwich with PVCcore.
• White gelcoat finish with sprayed non-skid.
• N.2 cockpit sun beds on engine cockpit hatches and on foredeck.
• N.2 engine room hatches.
• N.1 systems locker hatch and anchor locker hatch.
• N. 4 handrails, on roof top and bow deck
• Stainless steel ladder to the fly bridge with steps made of teak wood.

Teak

• Cockpit, helm station and dinette sole covered with 10 mm teak and solid sidecoamings.
• Solid teak sheer line toe rail.

Hatches, portlights and windows

• Low profile deck hatches.
• Custom smoke grey plexi windshield.
• Windshield center section opening with upper hinges.
• N.2 wipers with freshwater washer. Pump connected to boat freshwater tank.
• Hatches handles and hinges in stainless steel.

Deck accessories

• Mooring and steaming light post.
• Teak Flagpole.
• Watertight inlet for shore power.
• Hidden deck shower with hot and cold fresh water.
• Courtesy foot-lights.
• Inox Swimming ladder withdrawn in the aft platform

Mooring system

• Anchor windlass 1000 W with remote switches at helm and forepeak, chain
• diameter 8mm
• Stainless Steel Trefoil type anchor Kg 10.
• Stainless Steel stem plate with mooring fairlead integrated.
• Galvanized 8 mm steel chain, 50 mt length with swivel.
• N. 6 flush deck cleats, N. 2 on the bow, N 2 mid ships, N. 2 at stern.
• N. 8 Pushlock along the toerail toward the CL. for fenders.

DECK FURNITURE

Dinette

• C shaped lounge with folding CL seat.
• Drawer below seats
• Teak covered hi-low table.
• Hatch with direct access to bilge area
• Hatch with access to fuel tank inspection

Galley

• Stainless steel sink with hot-cold mixer faucet.
• Refrigerator 110 l.
• Freezer sunk in countertop 50 l.
• Electric cooktop with two burners.

Steering station

• Double helm seat to the front of the galley.
• Helm console with instruments and engine controls and various, 1 Display 9”
• 3” magnetic compass.
• Electronic engine controls.
• Ongaro stainless steel steering wheel.
• Hydraulic steering pump.
• Flybridge area: helm seat, stainless-steel steering wheel, engine controls.

Upholstery and canvas

• Dinette cushion with Sunbrella washable external cover.
• External cushions with closed cell rubber foam and with Sunbrella washableexternal cover.
