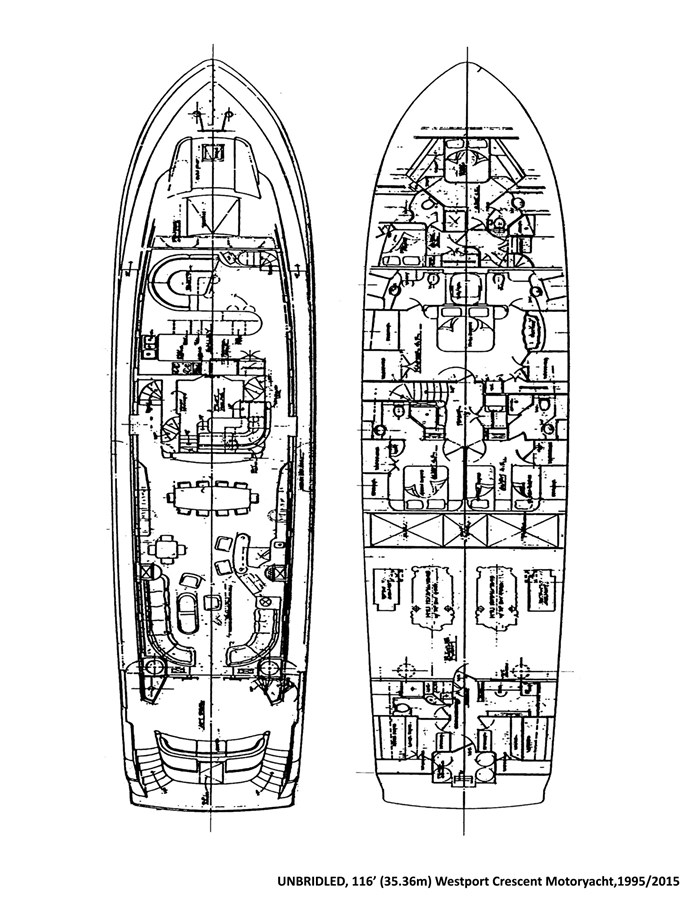

UNBRIDLED

CONSTRUCTION

• Fiberglass hull and superstructure, teak decks

DIMENSIONS

General

Length Overall (L.O.A.):

• 116.00 feet
• 35.36 meters

Length at Waterline (L.W.L.):

• 108.00 feet
• 32.91 meters

Beam (molded):

• 24.00 feet
• 7.32 meters

Draft (loaded):

• 5.75 feet
• 1.75 meters

Tonnage:

• 198 gross

Capacities
Fuel Capacity:

• 6,395 US Gallons
• 24,205 liters

Forward Belly Tank:

• 1,150 US Gallons
• 4,350 liters

Mid belly Tank:

• 845 US Gallons
• 3,200 liters

Day Tank:

• 1,230 US Gallons
• 4,655 liters

Water Capacity:

• 1,000 US Gallons
• 3,785 liters

Watermakers:

• 150 US Gallons
• 568 liters

Waste Lube Oil:

• 150 US Gallons
• 568 liters

Clean Oil:

• 150 US Gallons
• 568 liters

Steering Oil:

• 10 US Gallons
• 37 liters

Hydraulic Oil:

• 10 US Gallons
• 37 liters

Black Tank:

• 350 US Gallons
• 1,325 liters

Speed, Range, RPM
Maximum:

• 22.5 knots
• 600 nm
• 2,100 rpm

Cruising:

• 13.0 knots
• 1,250 nm
• 1,500 rpm

Economical:

• 10.0 knots
• 1,750 nm
• 1,250 rpm

MACHINERY

Main Engines
Engine Type:

• 2 MTU 12V396, @ 1,940 Hp each

Gearboxes for Main Engines:

• 2) ZF BW455

Drive:

• Props: Lips 48" x 481/ (2) 5 Blade Osborne 48"

Rudders:

• 2 5" Aquamet 22 stock with 9.3 sq. ft. stainless steel blades

Generators & Electricity

Generators:

• 2 Northern Lights 55Kw

Output:

• 120/220

Generator Fuel Consumption:

• 2 gallons per hour

Shore Power:

• 140’ 2/3 100A cables
• 2 240/208 100amp shore cords on Glendinning (Second Reel added 2105)

Batteries:

• 6 Northern Light AGM slim line batteries total 2400ah
• 2 trace 4024 inverter/charger for house bank
• 2 8D start batteries for port engine and port generator
• 2 8D start batteries for starboard engine and starboard generators
• Victron Battery Charger 3 bank 60A just added for Start Battery system, also tied into house bank as a backup system
• 3 SG27 gel cell emergency batteries.
• Charging by engine alternators and Sentry 24 volts 40-amp charger

Air Conditioning

• Marine Air Systems 216,000 btu
• 3 5-ton chillers (2 in 2021, 1 in 2016, plus 12 fan coil units)
• Engine room air-conditioned control room

Other Machinery
Watermakers:

• 2 Horizon Seafari reverse osmosis 1,500 gal/day

Trim Tabs/Stabilizers:

• Naiad 353 with Koopnautic control unit & 12’ blades

Bow Thruster:

• 16” 50hp hydraulic driven American thruster

Steering System:

• Kobelt hydraulic system (main engine or electric pump)

Fuel Separator & Filtration:

• Alfa Laval MMB 203S‐13 fuel centrifuge

Fuel filters:

• 3 Racor 79 1000 MAV on each main engine
• Racor 900 MA on each generator
• Flomax five fuel transfer pump (Alfa Laval can also be used)

Sewage System:

• USCG waste treatment system (2010) 350 US gallons holding

Fresh Water System:

• 2 Headhunter multistage with high flow strainer
• 2 Headhunter accumulator (PT-102)

Bilge Water Filtration:

• Flomax five fuel transfer pump

Bilge Alarms:

• 6 high level bilge alarms
• Both high and low bilge alarms show on panel in the wheelhouse
• High level alarm is audible through vessel ER and wheelhouse

Other:

• Campbell Hausfeld 20-gallon VT629003AJ air compressor
• Brownies Yacht Pro series AM252 Bauer dive tank compressor
• 2 40-gallon heaters feeding the hot water loop (2019)
• 15-gallon heater in line with loop (2022)

COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMS

Communication Systems
SATcom:

• Fleet 77 (Nera)
• Mini M (Nera)
• Westinghouse skycell
• MCM3 SeaTel
• 7 satellite decoder boxes, all accessed from central location

Telephone System:

• Panasonic TRW848 12 lines and intercom
• 2 desk units

SSB:

• Furuno

VHF: •

• Furuno
• 2 Standard Horizon (2021)

Cellular Phone System:

• 5 wireless units

Intercom:

• Yes

Navigation Systems
Radar:

• Furuno 2117BB, 72 mile
• Furuno 1944CBB, 48 mile

Compass:

• Furuno satellite compass
• Richie fluxgate compass
• Robertson fluxgate compass

Auto Pilot:

• Robertson AP9 MK3

Depth Sounder:

• Furuno FCV-292 – wheelhouse
• Brookes and Gatehouse
• Furuno FCV 582 fishfinder - flybridge

GPS:

• Furuno GPS Navigator GP 150

Weather FAX:

• Furuno Fax-207 – has Navtex board installed

Ships Computer:

• PC computer in wheelhouse custom for navigation only

Chart Plotter:

• Nobletec Admiral (2015)

Wind/Speed Log:

• Airmar Weathercastor 3.005

Whistle Controller:

• Kahlenberg M-511A

Lights:

• Aqua signal Nav lights
• 2 ACR RCL 100D 24vdc spotlights - handheld, plug-in spot on bow

Entertainment System:

• SAT-TV SeaTel dish for Direct TV,
• SeaTel dish for GLA or extended Direct TV coverage.
•  Hi-Fi and Wi-Fi system throughout guest areas.
• All stateroom TVs have their own DVDs, and iPad controlled Airplay system
• iPad control for Crestron Audio and lighting system (7 in total)
• Apple TVs added to all guest rooms with movies and music loaded
• Televisions:
  • Salon: Elite 60‘
  • Master: Panasonic 50’
  • VIP: Samsung 32‘
  • Next to VIP: Samsung 32’
  • Galley: Samsung 23’
  • Queen: Sharp 19’
  • Twin: Sharp 19’
