DIMENSIONS
General
Length Overall (L.O.A.): 88.92 feet (27.10 meters)
Beam (molded): 23.50 feet ( 7.16 meters)
Draft (loaded): 6.42 feet ( 1.95 meters)
Tonnage: 189 gross
Displacement (Half load): 174,827 lbs
Capacities
Fuel Capacity: 3,434 US Gallons (13,000 liters)
Water Capacity: 400 US Gallons ( 1,500 liters)
Black Water Capacity: 212 US Gallons (800 liters)
Watermakers: 56 US Gallons/hr
Speed Consumption per hour Range
RPM
Maximum:
26.0 knots
180 US Gallons /hr
500 nm
2,350
Cruising:
16.0 knots
60 US Gallons /hr
1,100 nm
1,800
Economical:
10.0 knots
30 US Gallons /hr
1,500 nm
1,200
MACHINERY

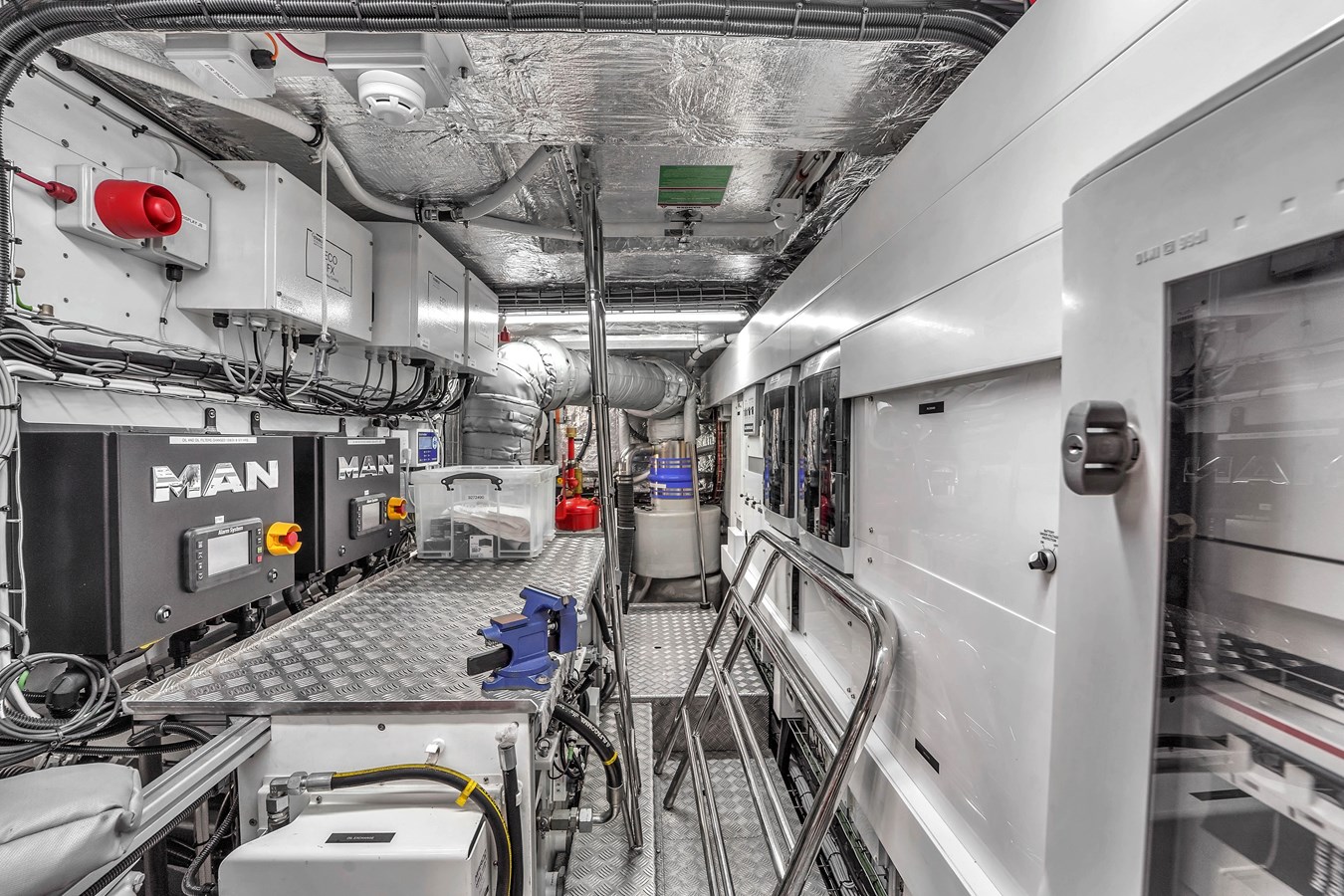

Main Engines
Engine Type:

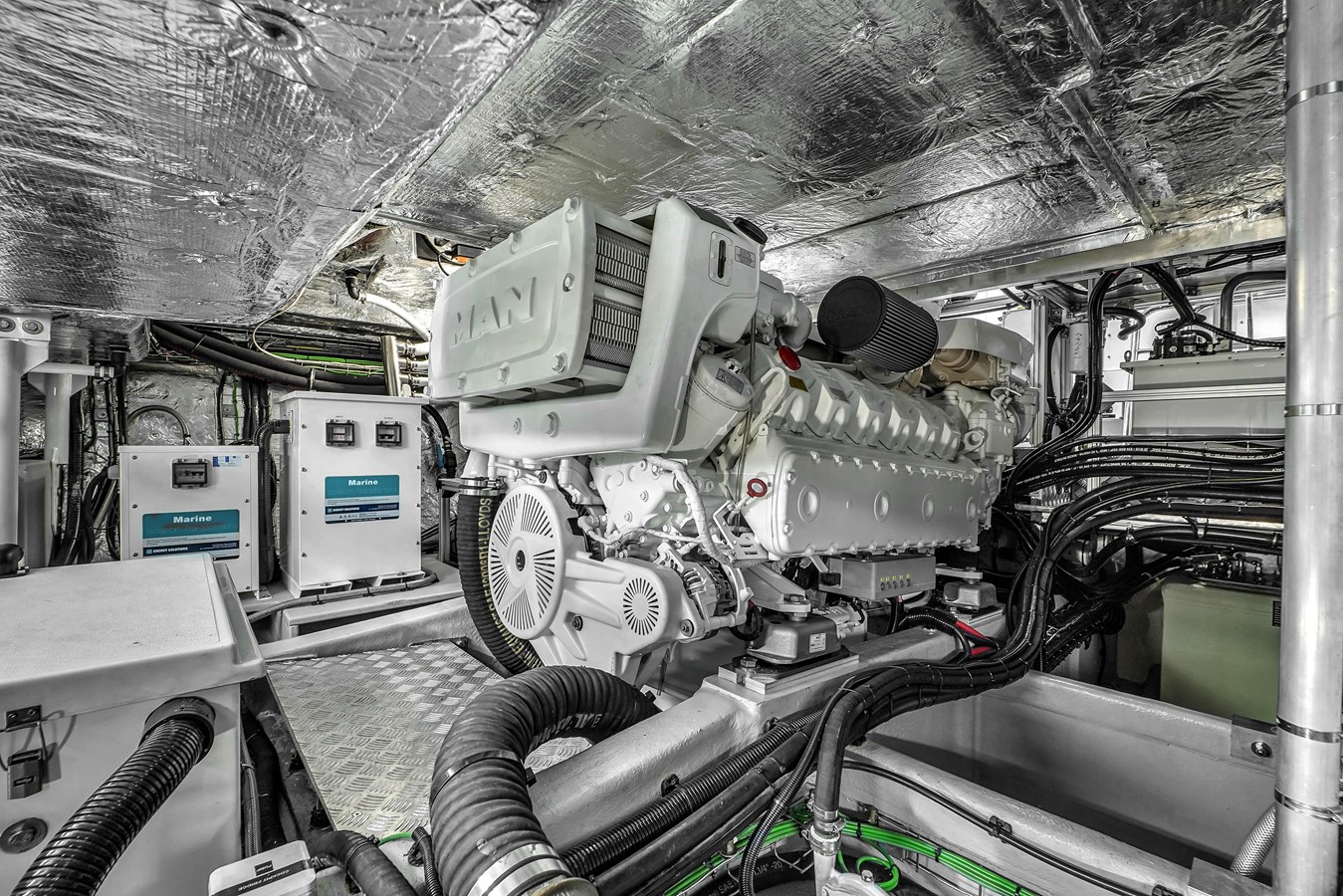

• (2) MAN V12 @ 1,900 Hp each – Extended warranty until Dec. 2028
Gearboxes for Main Engines:
• (2) 2F
Drive:
• Shaft drive
Propellers:
• (2)
Other:
• Aventics Marex OS 3 twin engine propulsion control levers – Aft
Docking Control Station
• Yacht controller remote control
Generators & Electricity
Output:
• 60Hz, 1800 Rpm
Generators:
• (2) 32kW Kohler 32EKOZD generators
Generator Fuel Consumption:
• 1.5 gallon per hour
Shore Power:
• (1) 1 phase 100 Amp 250V
• (1) 50 Amp 125/250V flexible cable, 20m
Inverter System:
• (2) Victron 8kW Quattro inverters, 230V 60Hz
Batteries:
• (8) AGM domestic batteries
Chargers:
• (2) Domestic
Transformer:
• Isolation Transformer, 24kVA Energy Solutions
Air Conditioning
Type:
• (2) MarinAire Variable Capacity Modular Chiller - VARC 144
• (2) 72,000 BTU
Other Machinery
Watermakers:
• HRO Seafari watermaker (221 l/hr with filters, flush,oil/water separator)
Trim Tabs/Stabilizers:
• CMC Fin stabilization system, underway and anchor
Bow & Stern Thruster:
• Hydraulic Sleipner bow thruster (SP550/386TC- BA45, 550kg), proportional joystick control
• Hydraulic Sleipner stern thruster (SP550/386TC-BA40, 470kg), proportional joystick control
Steering System:
• Hydraulic, proportional joystick control
Fuel Separator & Filtration:
• Separ FPS-210 fuel polishing system
• Marco electric transfer pump and oil change system
Fresh Water System:
• Gianneschi Ecoinox 2CE 24Vdc - Standby freshwater pump
Other:
• Surejust hot water calorifier, 200L (horizontal)
• Hot water calorifier (engine room)
• Aft docking control station (starboard cockpit)
COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMS
Communication Systems
VHF: • Garmin 315i VHF radio with Class D DSC, 2.4M whip VHF antenna
• Garmin GHS11 VHF repeater handset with active speaker (Bridgedeck)
• Garmin GHS11 VHF repeater handset with active speaker (Crew mess)
Internet: • Starlink

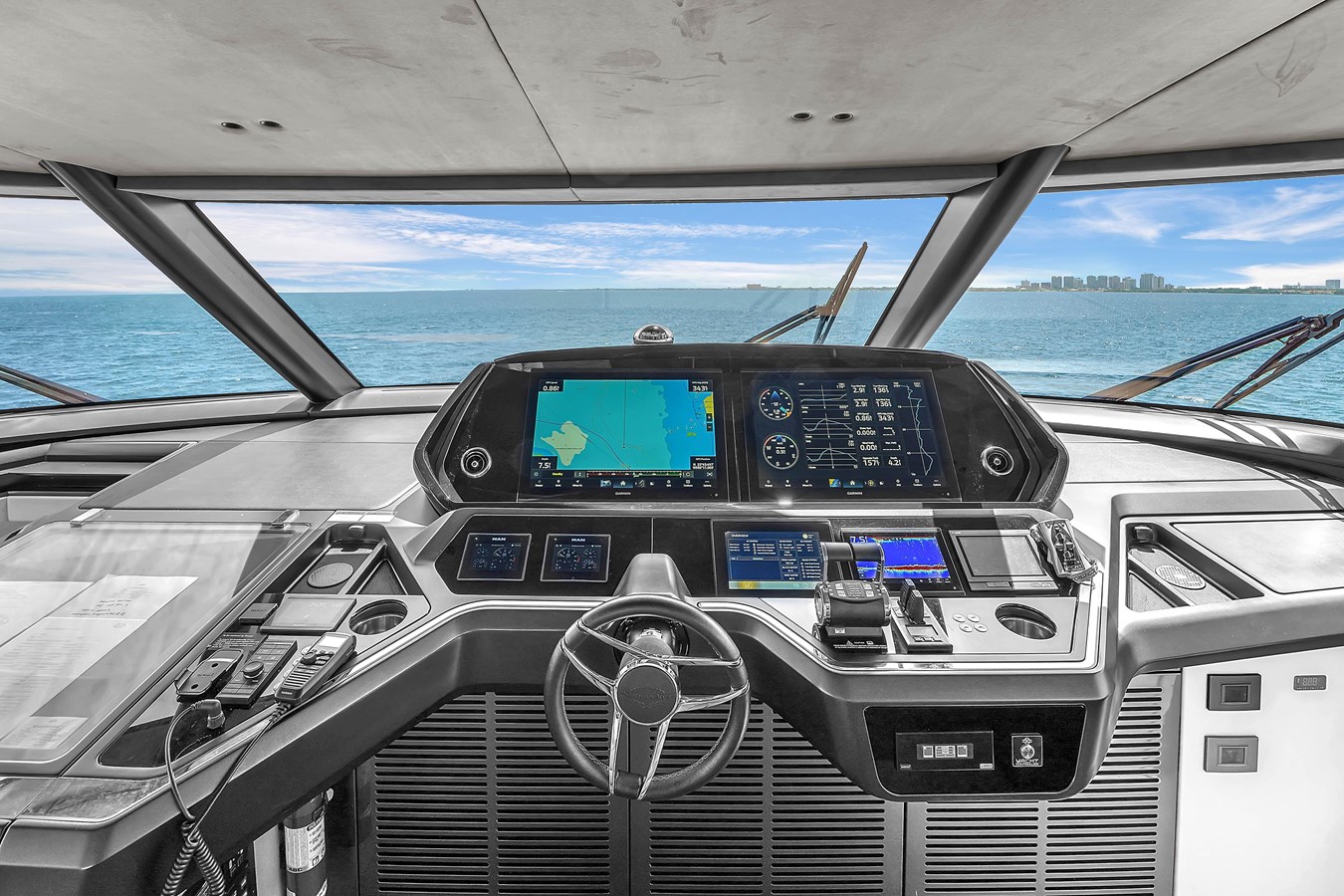

Navigation Systems
Radar: • Garmin GRM Fantom 126, 6ft open array, 96nm
Magnetic Compass: • Richie Helmsman HF-743B flush mount
Auto Pilot: • Garmin Autopilot GHP Reactor 40 w/ GHC 50 control
Depth Sounder: • Garmin GSD24 sonar module with B744v
speed/depth/temp transducer
GPS: • Garmin AIS 800 transceiver with dedicated VHF aerial and
GPS receiver
• Garmin GPS 24XD antenna
Wind Log: • Ultrasonic wind sensor
Other: • Garmin GSD25 sonar module with GT 51M-THP transducers
• Garmin GPSMAP 12" Multi-functional display
• Siren Marine
Entertainment System:
a. Video Equipment
TV’s: • (1) Samsung 65" QLED 4K TV with Apple TV App and Airplay 2 (Main
deck salon)
• (1) Samsung 55" QLED 4K TV with Apple TV App and Airplay 2
(Flybridge aft salon)
• (1) Samsung 43" 4K TV (Crew mess)
• (1) Samsung 55" QLED 4K TV with Apple TV App and Airplay 2 (Master)
• (1) Samsung 55" 4K Television with Apple TV App and Airplay 2
(Forward VIP stateroom)
• (1) Samsung 55" 4K Television with Apple TV App and Airplay 2
(Starboard Aft stateroom)
• (1) Samsung 55" 4K Television with Apple TV App and Airplay 2 (Port Aft
stateroom)
b. Audio Equipment
Stereo’s:
• (1) Ultra HD Blu-ray player (Main deck salon)
• Surround sound system: Sonance Soundbar, Sonos Amp, Rear Sonance
speakers, Sonos Subwoofer (Main deck salon)
• (4) Sonance 8" speakers w/ Sonos Amp (Main aft deck)
• (4) Sonance speakers with Sonos Amps and Sonos Subwoofer (Flybridge
aft salon)
• Sonance 8" speakers with Sonos Amp (Flybridge aft deck)
• (1) Sonos Beam Soundbar, Apple TV App and Airplay 2 (Crew mess)
• (1) Ultra HD Blu-ray player (Main deck salon)
• Surround sound system: Sonance Soundbar, Sonos Amp, Rear Sonance
speakers, Sonos Subwoofer (Main deck salon)
• Ultra HD Blu-ray player. Surround sound system with proficient Soundbar
and Sonoas Amp. Rear Sonance speakers with Sonos Amp and a Sonos
Subwoofer (Forward VIP stateroom)
